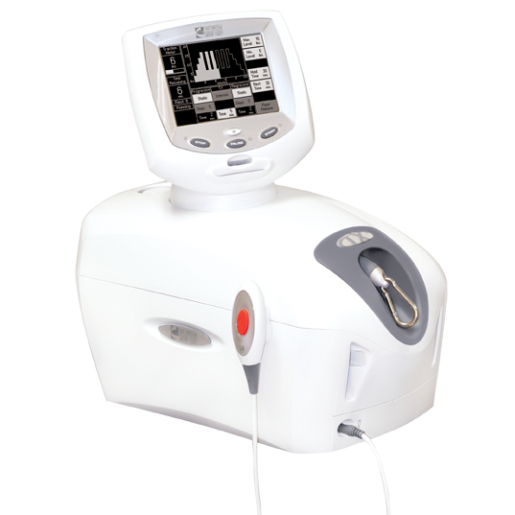

TX? Traction Unit
Brand: Chattanooga
Sku: 4759
Description:
Easy to operate
270° pivoting user interface
Digital monochromatic touch screen interface
Patient Data Cards record up to 14 treatment sessions
Store up to 10 user defined protocols
Intermittent, static and cyclic traction
Progressive and regressive steps
User-defined hold, rest and treatment times
Traction tension parameters: 0-200 lbs
Built-in safety features: - Patient Interrupt Switch - Cervical maximan poundage warning - Audible signal at the end of treatment and if Patient Interupt Switch activates Two-year warranty
| Mains Power | 100-240 V, 50/60 Hz |
| Power Consumption | 75 V |
| Current Consumption | 3.2 Amps Max |
| Product Weight | 30 lbs (14 kg) |
| Dimensions | 17.5"L x 9.5"W x 17.5"H (45 cm x 24 cm x 45 cm) |
| Electrical Safety Class | Class 1, Type B |
| Safety Tests | IEC/UL/EN |
| CAN C22.2 No. 601.1-M90 w/A2 | |
| cETLus Listed | |
| Traction Tension Parameters | Minimum - Maximum |
| Traction Period | 1 - 99 Minutes |
| Hold Period | 0 - 99 Seconds |
| Rest Period | 0 - 99 Seconds |
| Traction Tension | 0 - 200 lb [(0 kg/0 N) - (90 kg/890 N) |
| Progressive Steps | 1 Step - 9 Steps |
| Regressive Steps | 1 Step - 9 |
