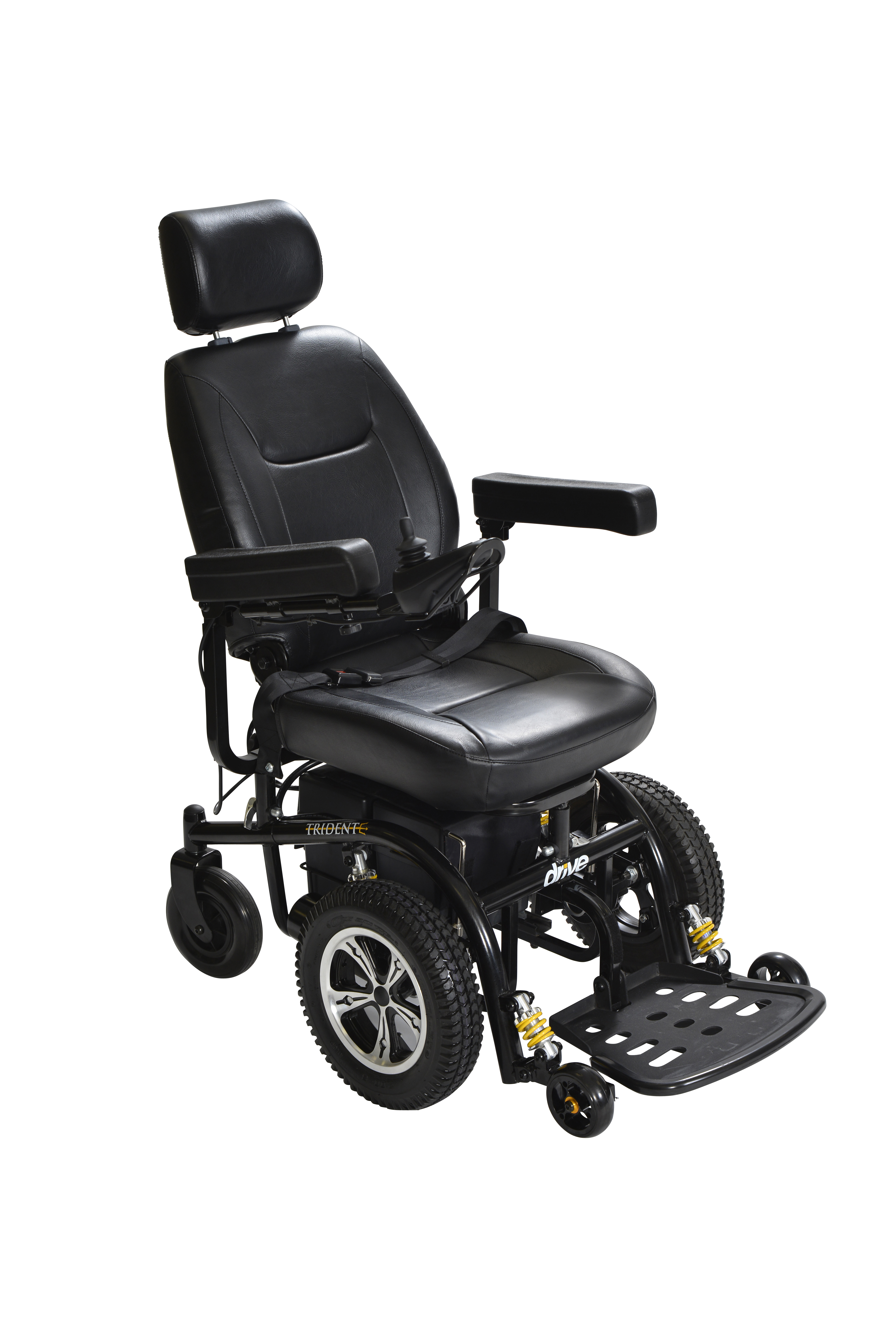

Trident Front Wheel Drive Power Chair
Shroudless design offers easy access to internal components and batteries
Semi-reclining Captain's seat with adjustable headrest offers three height adjustments and two depth options
Armrests are padded, adjustable, and removable
Quick-release pins allow easy seat removal
Adjustable, flip-up footplate includes rubber front bumper to prevent damage
Positioning belt included
Seat position can be adjusted forward and backward
Programmable controller
Black, flat-free, non-marking wheels
Large, front anti-tip wheels feature suspension for safety, smoother ride, and enhanced obstacle handling
Controller is protected by metal frame
Easy freewheel operation
Slide-out battery tray
Actual Product Weight | 180 lbs |
Anti Tip Wheels | Yes |
Batteries | 2 - 12V 36AH |
Battery Weight | 53 lbs |
Brakes | Electromechanical |
Casters | 8" |
Charger | Offboard, 4A |
Climbing Angle | 7.5 degrees |
Controller | PG VR2 50A |
Drive Wheels | 14" x 3" Flat Free |
Ground Clearance | 2" |
Heaviest Piece | 82 lbs |
Max Speed | 4 mph |
Maximum Range | 15 miles |
Motor | 2 - 24V x 320W x 4600rpm |
Number of Wheels | 4 |
Overall Product Height | 48" |
Overall Product Length | 42.25" |
Overall Product Width | 24" |
Primary Product Color | Black |
Primary Product Material | Steel |
Product Weight Capacity | 300 lbs |
Seat Depth | 18" |
Seat Weight | 51 lbs |
Seat Width | 18" |
Seat to Floor Height | 21"-24" |
Seat to Foot Deck | 16.5"-19.5" |
Steering Type | Joystick |
Turning Radius | 24" |
Wheelchair Weight Without Battery | 127 lbs |
