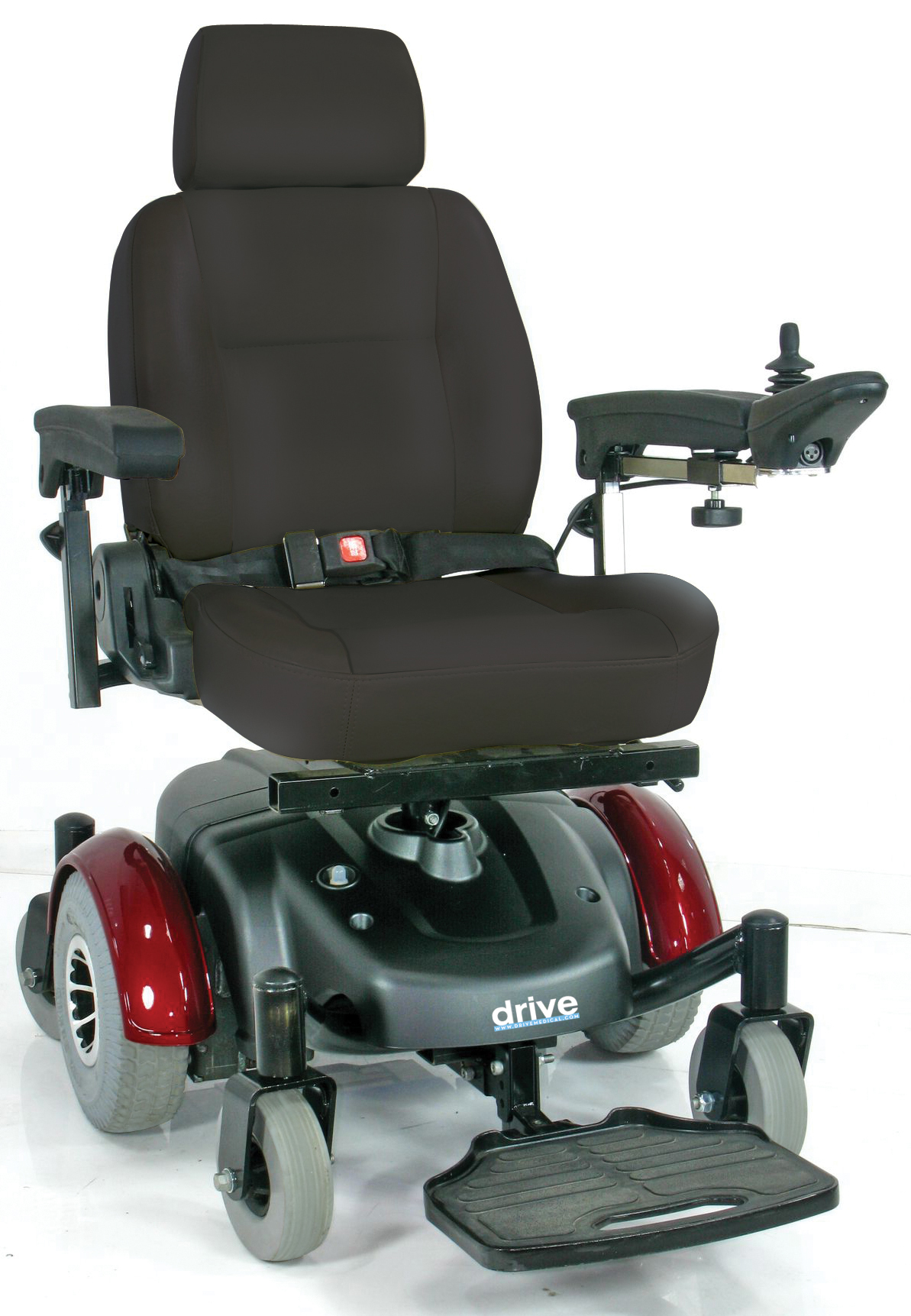

Image EC Mid Wheel Drive Power Wheelchair

Brand: Drive Medical
Sku: 2800ecbu-rcl

Includes interchangeable color shrouds in red and blue

Front suspension system for extra-smooth ride

Height-adjustable swivelling Captain's seat features fold-down backrest

Seat back reclines and features adjustable headrest

Adjustable-length controller mount

Armrests are padded, adjustable, and removable

Adjustable, flip-up footplate

Positioning belt included

Flat-free, non-marking tires

Easy freewheel operation

Easy access to batteries from the rear of the chair

Share this product:

Actual Product Weight 192 lbs
Anti Tip Wheels Yes
Batteries 2 - 12V 35AH
Battery Weight 53 lbs
Brakes Electromagnetic
Casters 6"
Charger Offboard, 4A
Climbing Angle 6 degrees
Controller PG VR2 50A
Drive Wheels 10" x 3" Flat Free
Ground Clearance 2"
Heaviest Piece 88 lbs
Max Speed 4.5 mph
Maximum Range 15 miles
Motor 2 - 24V x 200W x 3900rpm
Number of Wheels 6
Overall Product Height 42"
Overall Product Length 42"
Overall Product Width 24"
Primary Product Color Red, Blue
Primary Product Material Steel
Product Weight Capacity 300 lbs
Seat Depth 16"
Seat Weight 51 lbs
Seat Width 18"
Seat to Floor Height 20"-23"
Seat to Foot Deck 15.5"-18.5"
Steering Type Joystick
Turning Radius 27.5"
Wheelchair Weight Without Battery 139 lbs
