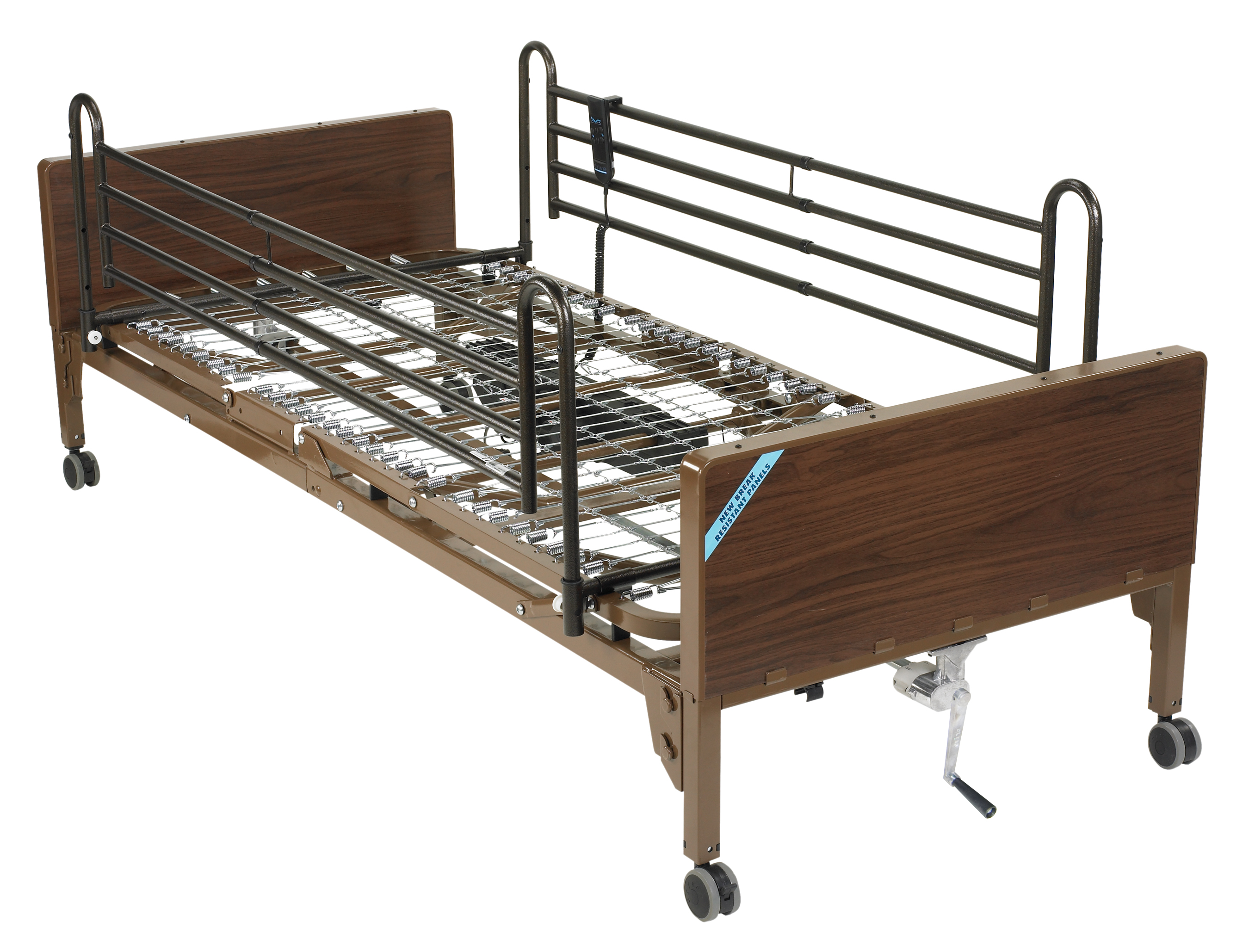

Semi Electric Bed
Brand: Drive Medical
Sku: 15004bv-pkg
Model:
Description:
Head and foot section adjust electronically; Height adjusts manually
Channel frame construction provides superior strength
Zinc-coated spring deck
Clip-on pendant allows it to be mounted over bed rail
Pendant will operate hand and foot section at the same time
Bed ends are attractive in any decor
UL 73 pending
CSA approved
Manufactured in ISO9001 facility
Easy to set up
Quiet, smooth operation
Side clips store shaft when bed is unassembled
| Actual Product Weight | 180 lbs |
| Bed Height (Max) | 19.5" |
| Bed Height (Min) | 12.5" |
| Bed Height w/ Casters (Max) | 22.5" |
| Bed Height w/ Casters (Min) | 15.5" |
| Casters | 3" |
| Foot Section Height (Max) | 30.5" |
| Foot Section Height (Min) | 23.5" |
| Foot Section Height w/ Casters (Max) | 33.5" |
| Foot Section Height w/ Casters (Min) | 26.5" |
| Footboard Height (Max) | 30" |
| Footboard Height (Min) | 23" |
| Footboard Height w/ Casters (Max) | 33" |
| Footboard Height w/ Casters (Min) | 26" |
| Ground Clearance | 3"-11" |
| Ground Clearance w/ Casters | 6"-14" |
| Head Section Height (Max) | 44" |
| Head Section Height (Min) | 37" |
| Head Section Height w/ Casters (Max) | 47" |
| Head Section Height w/ Casters (Min) | 40" |
| Headboard Height (Max) | 32.25" |
| Headboard Height (Min) | 25.25" |
| Headboard Height w/ Casters (Max) | 35.25" |
| Headboard Height w/ Casters (Min) | 28.25" |
| Motor | 15005MH-l (Head) |
| 15005MF-L (Foot) | |
| Overall Product Height | 35.25" |
| Overall Product Length | 89" |
| Overall Product Width | 34.875" |
| Primary Product Color | Brown |
| Primary Product Material | Steel |
| Product Weight Capacity | 450 |
